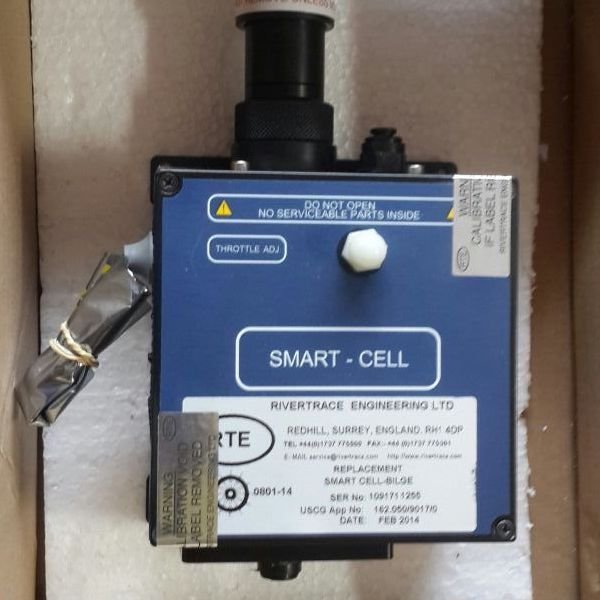

Rivertrace Smart Cell 15 ppm Oil Content Monitor

Specification

  • Maker : Rivertrace Engineering
  • Description : 15 Ppm oil content monitor
  • Condition : new & surplus

Ship Automation can supply New and refurbished spare parts of Rivertrace Engineering .

To receive quote for Rivertrace Smart Cell 15 ppm Oil Content Monitor, please email us on info@shipautomation.com

REVIEWS DESCRIPTION TECHNICAL DATA DOWNLOADS ORDERING INFORMATION

  • I have been communicating with Mr Sagar for my technical needs. He has been fair, understanding and accommodating towards my inquiries. I look forward to more future dealings with him

    Wong Yee

  • Have been using their supply so far for our vessels, so far the item is good and some obsolute item could be found by them.

    Tech Nik

  • We have been dealing with Mr. Manan! Excellent cooperation and all items purchased are packaged professionally and arriving in time and in good working condition! Rare to find a shop in India dealing in such a good way!

    CHB

  • We had been dealing with M/s Ship Automation for the ship automation and electrical spares for over 3years now....Always had a good experience throughout the purchase process! The parts offered are of superior quality and arrive promptly! We will continue to have M/s Ship Automation as our partner in spare part supplies....Rgds, Vinod Kaimal - Vibspectrum International LLC-Dubai

    Vinod Kaimal
View All Reviews

Measurement

  • Oil types:    Fuel Oil, Diesel and Mixture C (IMO defined)
  • Clean water calibration:    +/- 2ppm of factory set values
  • Oil measurement range:    0 – 40 ppm all types
  • Resolution:    1 ppm
  • Accuracy oil + solids:    within +/- 5ppm as per IMO requirements
  • Solids discrimination:    100ppm Iron Oxide

Alarms

  • Oil alarm 1 & 2 setpoint:    1 – 15 ppm user adjustable
  • Oil alarm 1 delay:    0 – 5 seconds user adjustable
  • Oil alarm 2 delay:    0 – 600 seconds user adjustable
  • Alarm contacts:    2 single pole Alarm Relays 5A @ 230Vac (NC in alarm)



User Interface

  • LCD display:    4 line x 16 alphanumeric back lit LCD display
  • Control + Setup:    3 button keypad



Input / Output

  • Analogue output:    24v loop powered 4-20mA / 0 – 20mA
  • Communications:    RS232 protocol
  • Power & Relay Cable terminals:    up to 2.5mm2



Analogue Out

  • Cable terminals:    up to 1.5mm2
  • Switch inputs:     2 x switch inputs for separator & flow status up to 1.5mm2



Data Storage and Retrieval

  • Calibration data:    Stored onboard microcontroller
  • Storage data:    Stored on board mounted memory media
  • Data retrieval:    via LCD display or download to PC with Hyperterminal



Environmental & Sample

  • Ambient temperature:    -10 to +60oC
  • Sample / clean water temperature:    +1 to +60oC
  • Sample / clean water flow rate:    0.5 – 4.0 liters / min
  • Sample / clean water pressure:    0.1 bar – 10 bar
  • Sample / clean water select:    3 way universal solenoid valve
  • Sample pipe fittings:    1/4 inch BSPP



System and Supply

  • Supply voltage:    115 / 230V ac, 50 – 60Hz (24V ac available)
  • Supply voltage Consumption:    < 50 VA including solenoid valve
  • Protection class:    IP 65
  • Approvals:    IMO MEPC 107 (49) and Class approval from NKK, GL + USCG.
  • Overall Dimensions – mm:    289 (w) X 205 (h) X 149 (d)
  • Weight:    3.3kg
